UltraTool Pneumatic Injector Removal Extractor Puller Tool Set
27-piece handheld pneumatic diesel injector puller kit. Delivers up to 600Nm impact force with 300–900 impacts/min. Includes pneumatic hammer, handheld handle, 18 adapters, 3 puller hooks, air hose, EU/US connectors, and blow-molded carrying case. 7.4kg.
Interested? Contact us for pricing and availability.
Request a QuoteDetailed Description
The Wöhrstahl UltraTool Pneumatic Injector Removal Extractor Puller is a professional-grade 27-piece kit designed to remove stubborn, seized, or carbon-stuck diesel and gasoline injectors quickly and safely. It combines slide hammer power with pneumatic impact for strong, controlled force while minimising damage risk.
Key Features:

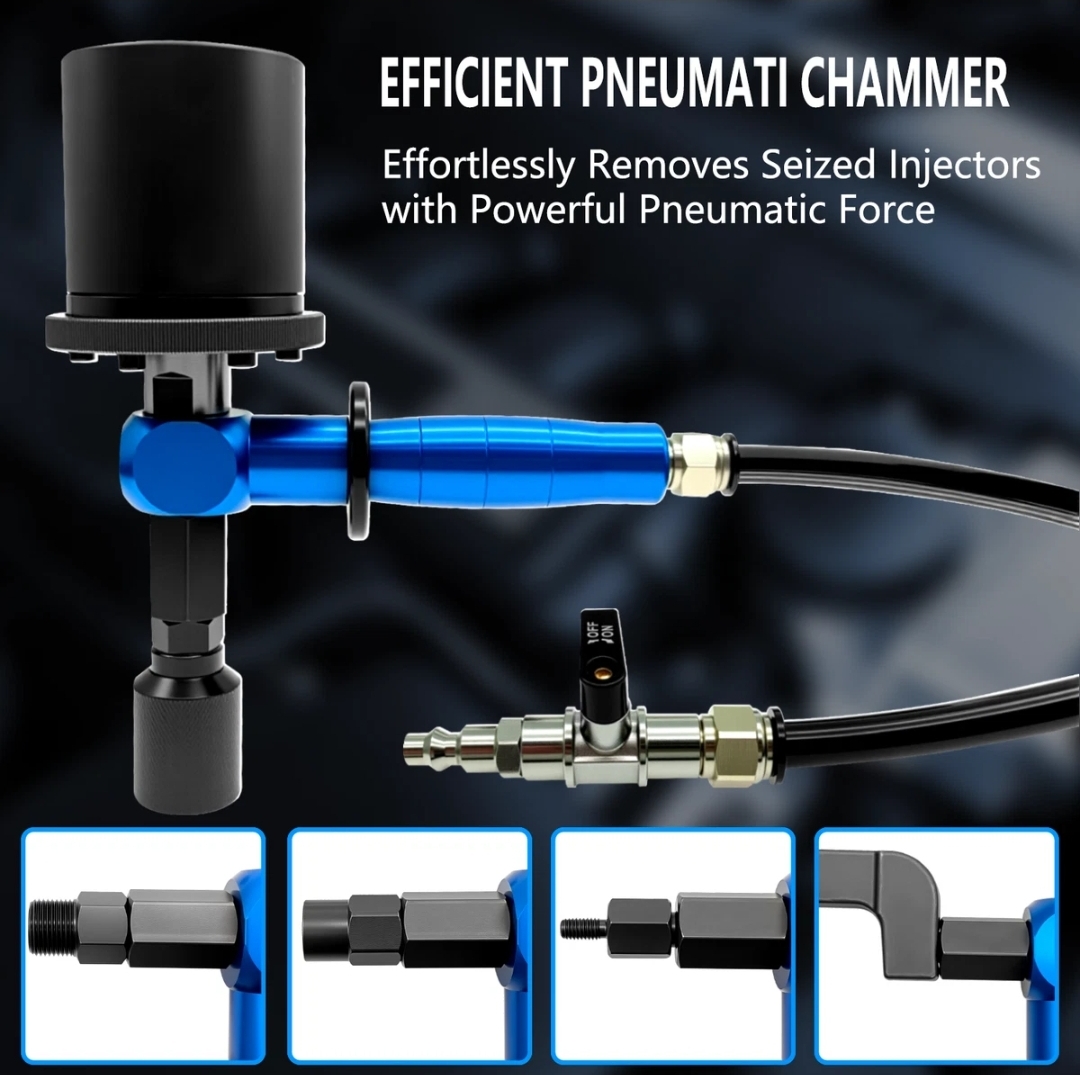

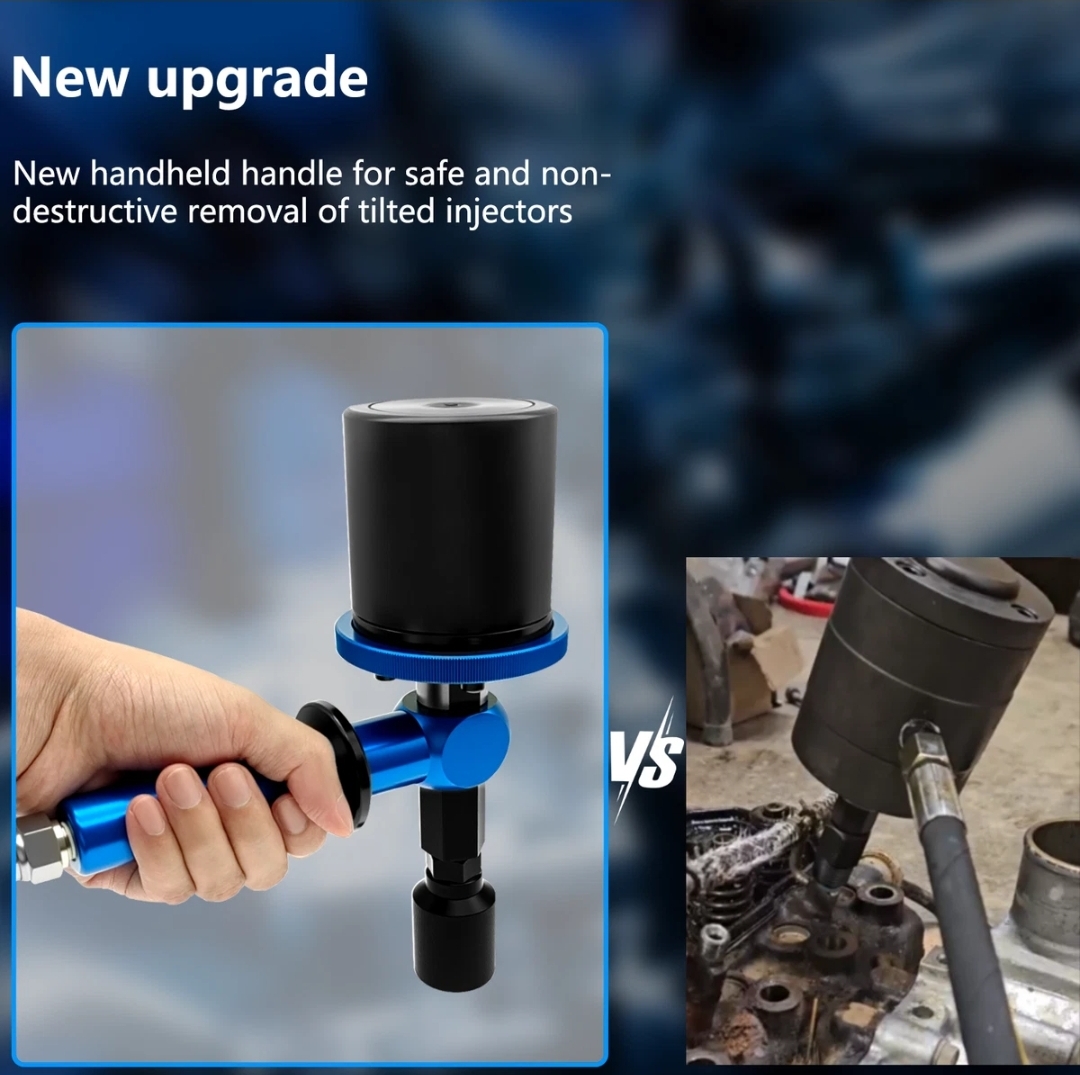

• Powerful Pneumatic Performance: Up to 600Nm impact force, 300–900 impacts per minute, 38mm stroke • Dual Operation Modes: Full stroke (hammering) for maximum pulling force, short stroke (vibration) for gradual loosening — controlled via adjustable ring • Compact & Versatile: Shorter than competing tools, ideal for tight engine bays including areas near the firewall • Handheld Handle: Ensures stable, straight operation; safely holds tool when injector releases; removable for very tight spaces • Durable Construction: Heat-treated carbon steel with anti-corrosion coating

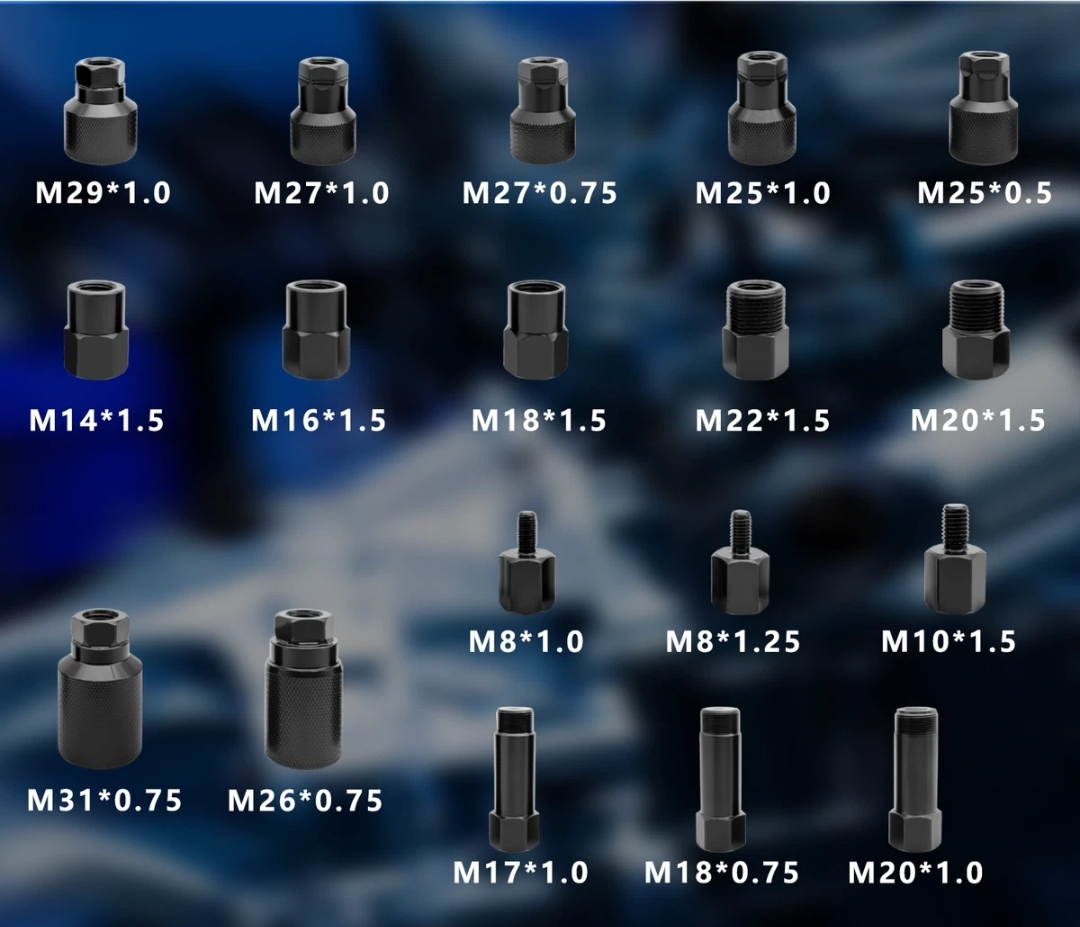

Wide Compatibility — 18 Adapters covering: • Bosch, Delphi, Denso, Siemens, CR-Injectors • Sizes: M8x1.0, M8x1.25, M10x1.5, M14x1.5, M16x1.5, M17x1.0, M18x0.75, M18x1.5, M20x1.0, M20x1.5, M22x1.5, M25x0.5, M25x1.0, M26x0.75, M27x0.75, M27x1.0, M29x1.0, M31x0.75

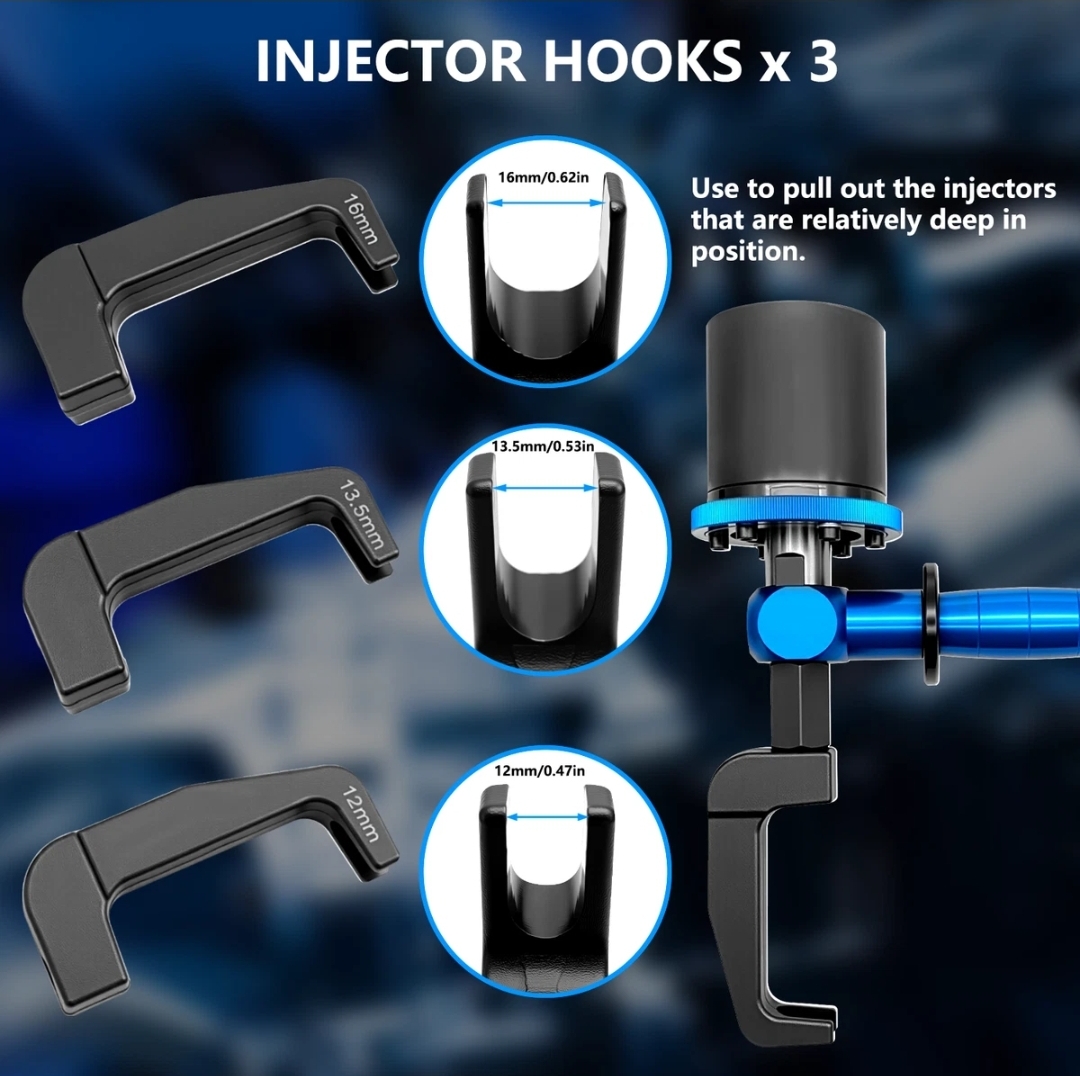

3 Puller Hooks (for deep-set injectors): • 12mm, 13.5mm, and 16mm widths
Operation: • Connect to standard air supply (72–116 psi / 5–8 bar) • Install correct adapter (recommended 20–30Nm torque) • Attach hammer and activate to loosen injector • Reduce pressure once injector begins to move

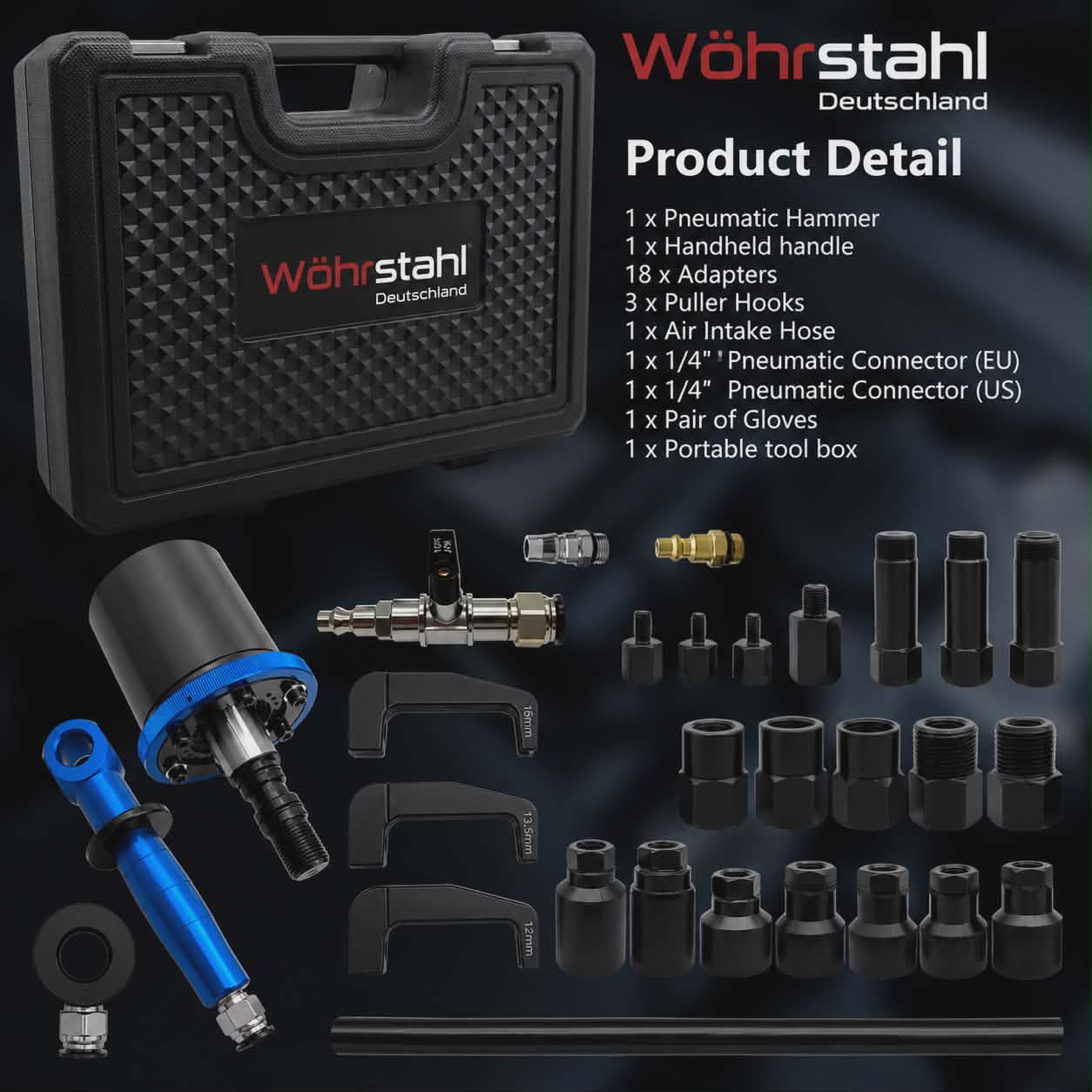

What’s Included (27 Pieces): • 1x Pneumatic hammer • 1x Handheld handle • 18x Injector adapters • 3x Puller hooks (12mm, 13.5mm, 16mm) • 1x Air intake hose & air valve • 1x EU pneumatic connector (1/4") • 1x US pneumatic connector (1/4") • 1x Pair of gloves • 1x Heavy-duty blow-molded carrying case

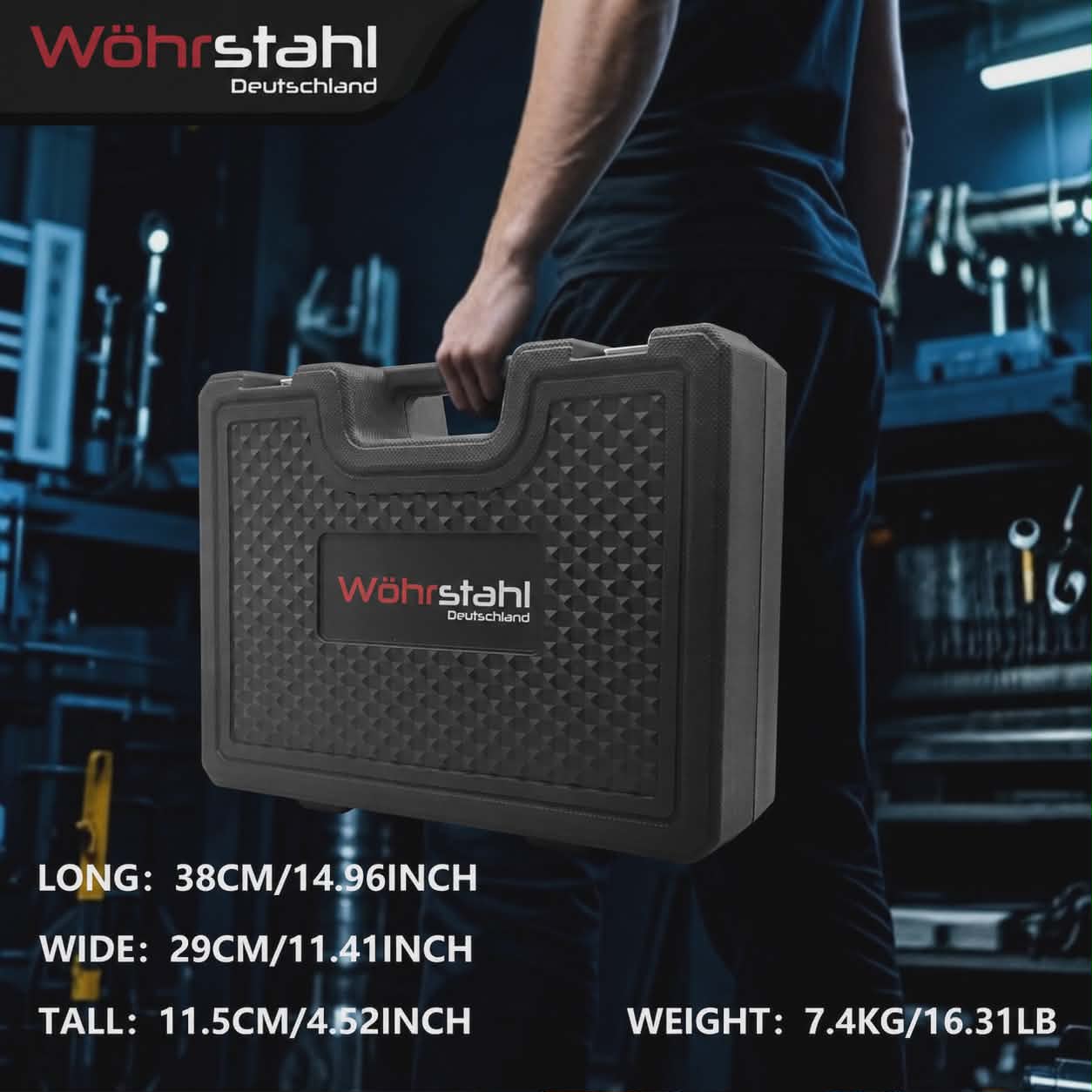

Case Size: 38 × 29 × 11.5 cm (14.96 × 11.41 × 4.52 in) Weight: 7.4 kg (16.3 lb)
Ideal For: • Removing seized, rusted, or carbon-locked injectors • Professional workshops and serious DIY users • Working in tight or hard-to-reach engine areas
